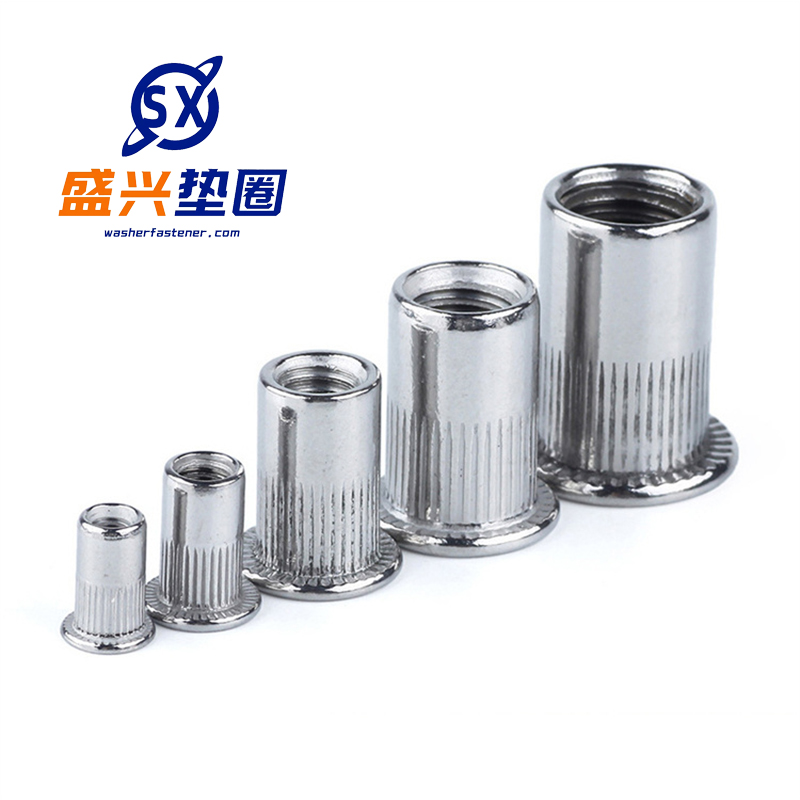

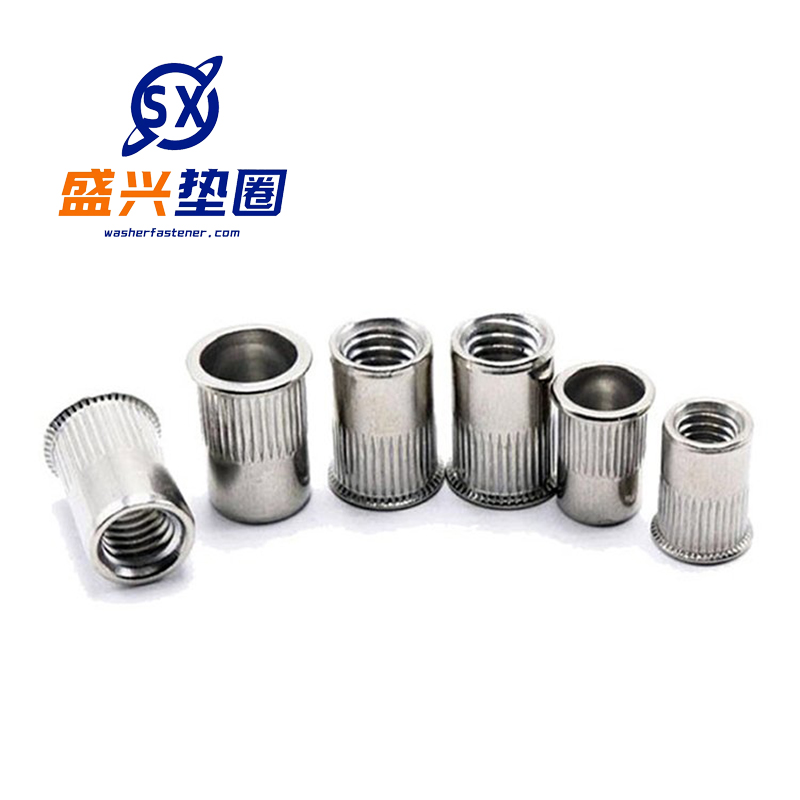

Pull-in rivet nut
Rivet nut: an excellent choice for fastening connections Rivet nuts, as an innovative fastening solution, play a key role in many industrial and manufacturing fields with their unique design and excellent performance. Product features: 1. High strength: Made of high-quality materials, it has...
Description
marker
Rivet nut: an excellent choice for fastening connections
Rivet nuts, as an innovative fastening solution, play a key role in many industrial and manufacturing fields with their unique design and excellent performance.
Product features:
1. High strength: Made of high-quality materials, it has excellent tensile and shear strength, ensuring a stable and reliable connection.
2. Strong universality: Suitable for various materials such as metal, plastic, composite materials, etc., to meet the needs of different application scenarios.
3. Easy installation: No need for welding or tapping, installation can be quickly completed through specialized riveting tools, greatly improving work efficiency.
4. Good sealing: During the fastening process, it can form a good sealing effect, effectively preventing liquid and gas leakage.
5. Beautiful and durable: The surface has been finely treated to have good corrosion resistance and wear resistance, while maintaining a clean and beautiful appearance.
Product specifications:
We offer a variety of specifications of rivet nuts, including different thread sizes (such as M3, M4, M5, etc.), lengths, and head shapes (such as flat head, countersunk head, round head, etc.), to meet your diverse design requirements.
Application areas:
Rivet nuts are widely used in industries such as automotive manufacturing, aerospace, electronic equipment, furniture manufacturing, and building decoration. Whether it is thin plate connection, frame assembly or structural reinforcement, rivet nuts can provide reliable fastening effect.
Quality assurance
We strictly follow international quality standards and conduct rigorous testing and inspection on each batch of rivet nuts to ensure the stability and reliability of product quality. At the same time, we also provide comprehensive after-sales service to ensure that you have no worries.
Choose our rivet nuts to provide a sturdy, efficient, and aesthetically pleasing fastening solution for your project, helping your business achieve greater success.

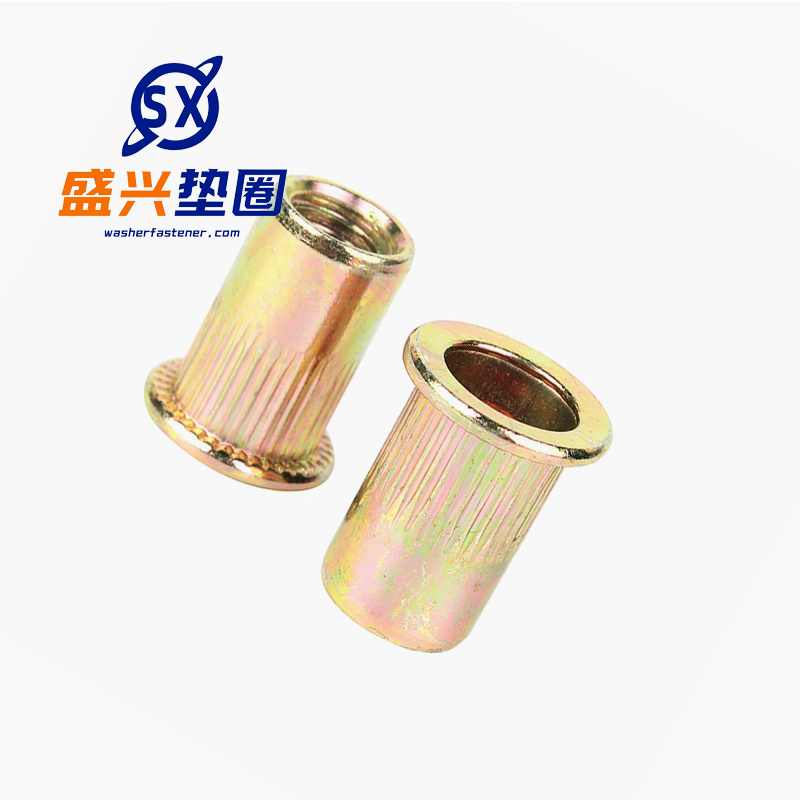

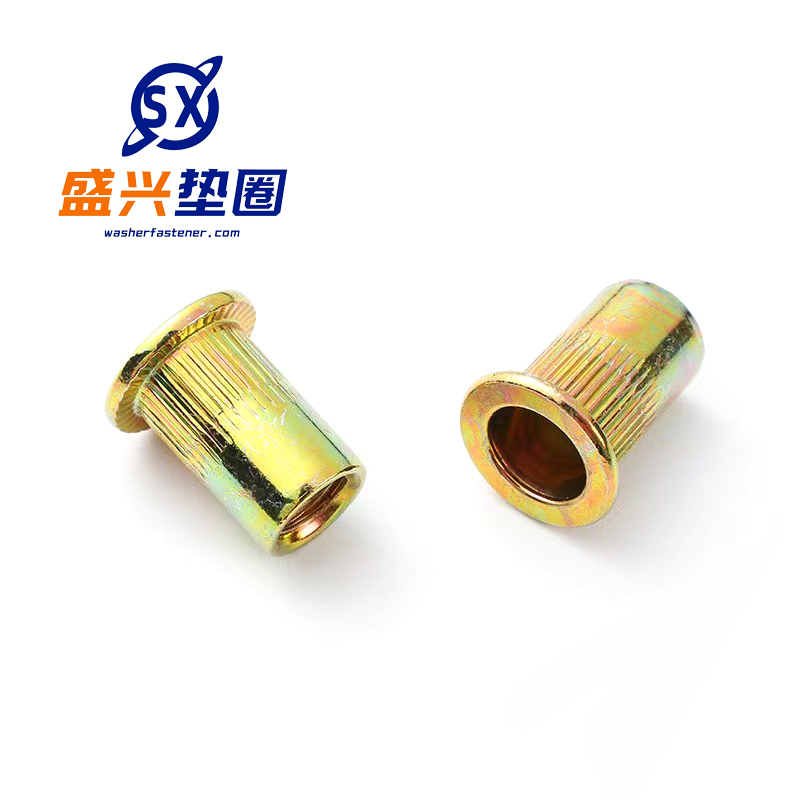

Straight vertical stripes
(Unit):mm
| Thread | P/N | Riveting Range (Min - Max) | Post-riveting Height (Reference) | Installation Hole Diameter | D (Shank Diameter) | Head Diameter | Head Thickness | Total Length |
| M3 | PISW-0315 | 0.5 - 1.5 | 6.0 | 5.0 | 4.9 | 8.0 | 0.8 | 10.0 |
| M4 | PISW-0420 PTSW-0435 |
0.5 - 2.0 2.0 - 3.5 |
6.0 | 6.0 | 5.9 | 9.0 | 0.8 | 12.0 |
| M5 | PTSW-0520 PISW-0550 |
0.5 - 2.5 2.5 - 5.0 |
7.5 | 7.0 | 6.9 | 10.0 | 1.0 | 13.0 16.5 |
| M6 | PTSW-0630 PTSW-0655 |
1.5 - 3.0 3.0 - 5.5 |
8.0 | 9.0 | 8.9 | 12.30(13.0) | 1.3 | 15.0 19.5 |
| M8 | PISw-0835 | 1.0 - 3.5 3.5 - 6.0 |
11.5 | 11.0 | 10.9 | 14.5(16.0) | 1.5 | 18.0 21.0 |
| M10 | PIS-040 | 1.0 - 4.0 | 13.5 | 13.0 | 12.9 | 17.0(19.0) | 1.7 | 21.0 |
| M12 | PIsN-1240 PISW-1265 |
4.0 - 4.5 4.0 - 6.5 |
13.5 14.0 |
15.0 | 14.9 | 18.0 | 1.7 | 22.5 |
| M10 | PTSW-1035(12H) | 1.0 - 3.5 | 11.0 | 12.0 | 11.9 | 16.0 | 1.6 | 19.0 |
| M12 | PTSW-1240(16F) PISW-1260(16h) |
0 - 4.7 3.5 - 6.0 |
15.0 16.0 |
Small countersunk vertical stripe
(Unit):mm
| Thread | Model | Riveting Range (Min - Max) | Post-riveting Height (Reference) | Installation Hole Diameter | D (Shank Diameter) | Head Diameter | Head Thickness | Total Length |
| M3 | XCTW-0320 | 0.5 - 2.0 | 6.2 | 5.0 | 4.9 | 6.0 | 0.5 | 9.0 |
| M4 | XCTW-0420 XGTW-0440 |
0.5 - 2.0 2.0 - 4.0 |
7.0 | 6.0 | 5.9 | 7.0 | 0.5 | 12.0 13.0 |
| M5 | XCTW-0520 XCTW-0540 |
0.5 - 2.0 2.0 - 4.0 |
7.0 | 7.0 | 6.9 | 8.0 | 0.5 | 11.5 13.0 |
| M6 | XCTW-0625 XCTW-0650 |
0.5 - 2.5 | 8.5 | 9.0 | 8.9 | 10.0 | 0.6 | 14.0 16.0 |
| M8 | XCTW-1035 XCTW-0830 |
2.5 - 3.0 3.0 - 5.0 |
10.0 | 11.0 | 10.9 | 12.0 | 0.65 | 16.5 |
| M10 | XCTW-1060 | 1.0 - 3.5 5 - 6.0 |
12.5 | 13.0 | 12.9 | 14.0 | 0.7 | 19.0 22.0 |
| XCTW-1035(12H) | 1.0 - 3.5 | 12.5 | 12.0 | 11.9 | 13.0 | 0.7 | 19.0 | |
| M12 | XCTW-1240 | 1.0 - 4.0 | 16.2 |

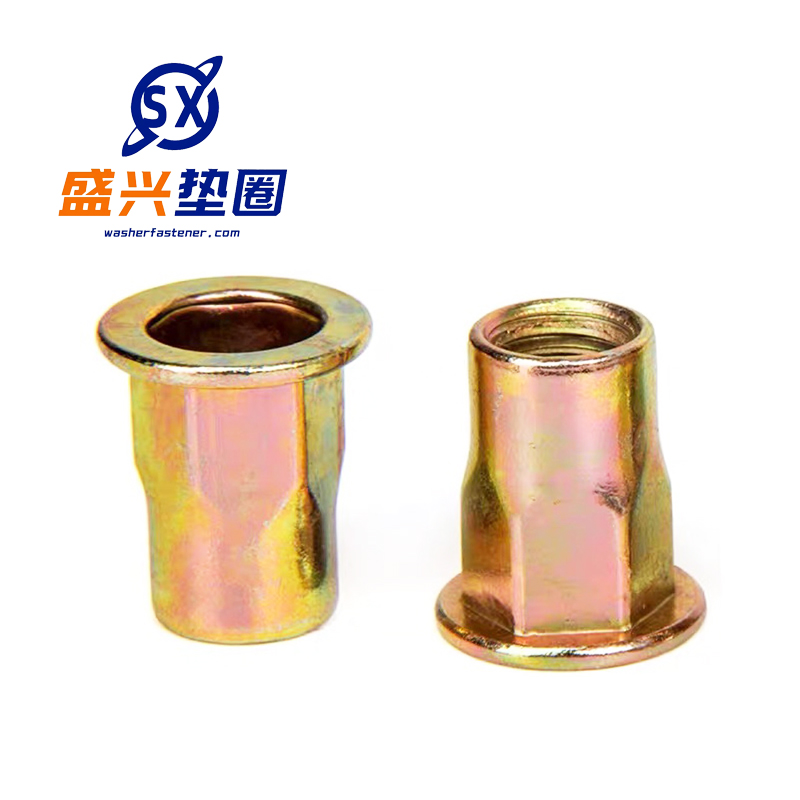

Flathead half hexagon
(Unit):mm
| Thread | Absolute Number | Riveting Range (Min - Max) | Post-riveting Height (Reference) | Installation Hole Size | D (Shank Diameter) | B (Head Diameter) | K (Head Thickness) | L (Total Length) |
| M4 | PTBL-0420 | 0.5 - 2.0 | 6.5 | 6.0 | 5.9 | 9.0 | 0.8 | 11.0 |
| M5 | PTBL-0525 | 0.5 - 2.5 | 8.0 | 7.0 | 6.9 | 10.0 | 1.0 | 13.0 |
| M6 | PTBL-0630 | 0.5 - 3.0 | 8.5 | 9.0 | 8.9 | 12.7 | 1.35 | 15.0 |
| M8 | PTBL-0835 | 1.0 - 3.5 | 10.5 | 11.0 | 10.9 | 16.0 | 1.5 | 18.0 |
| M10 | PTBL-1035 | 1.0 - 3.5 | 12.5 | 13.0 | 12.9 | 18.0 | 1.7 | 21.0 |
| M12 | PTBL-1240 | 1.0 - 4.0 | 14.0 | 15.0 | 14.9 | 20.0 | 1.7 | 22.0 |
| M10 | PTBL-1035(12H) | 1.0 - 3.5 | 11.0 | 12.0 | 11.9 | 17.0 | 1.6 | 19.0 |
| M12 | PTBL-1250(16H) | 2.0 - 6.0 | 16.5 |
Smal eadhal exagon inside andoutside
(Unit):mm
R=Reduce/H=HeadHH=Half hex/B=Body/S=Steel
| Thread | P/N | Riveting Range (MIN - MAX) | Post-riveting Height (Reference) | Installation Hole Diameter | D (Shank Diameter) | Head Diameter | Head Thickness | Total Length |
| M3 | XTNWL-0315 | 0.5 - 1.5 | 5.2 | 5.0 | 4.9 | 5.8 | 0.5 | 8.5 |
| M4 | XTNWL-0420 | 0.5 - 2.0 | 8.3 | 6.0 | 5.9 | 7.2 | 0.6 | 11.0 |
| M5 | XTNWL-0525 | 0.5 - 2.5 | 8.7 | 7.0 | 6.9 | 8.0 | 0.6 | 13.0 |
| M6 | XTNWL-0635 | 1.0 - 3.5 | 10.5 | 9.0 | 8.9 | 10.2 | 0.7 | 15.5 |
| M8 | XTNWL-0835 | 1.0 - 3.5 | 11.3 | 11.0 | 10.9 | 12.2 | 0.7 | 17.0 |
| M10 | XTNWL-1040 | 1.0 - 4.0 | 12.8 | 13.0 | 12.9 | 14.5 | 0.8 | 19.0 |
| M12 | XTNWL-1240 | 1.5 - 4.0 | 15.5 |
Flat Stripe Blind Hole
(Unit):mm
F=Flat/H=Head/K=Knurled/B=Body S=Steel
| Thread | Model | Riveting Range (MIN - MAX) | Post-riveting Height (Reference) | Installation Hole Diameter | D (Shank Diameter) | Head Diameter | Head Thickness | Total Length |
| M4 | PTTWM-0420 | 0.5 - 2.0 | 12.5 | 6.0 | 5.9 | 9.0 | 0.8 | 16.0 |
| PTTWM-0435 | 2.0 - 3.5 | 18.0 | ||||||
| M5 | PTTWM-0525 | 0.5 - 2.5 | 11.5 | 7.0 | 6.9 | 10.0 | 1.0 | 17.0 |
| PTTWM-0550 | 2.5 - 5.0 | 19.0 | ||||||
| M6 | PTTWM-0630 | 0.5 - 3.0 | 12.7 | 9.0 | 8.9 | 12.3 | 1.3 | 19.2 |
| PTTWM-0655 | 3.0 - 5.5 | 21.0 | ||||||
| M8 | PTTWM-0835 | 1.0 - 3.5 | 14.8 | 11.0 | 10.9 | 14.5 | 1.5 | 21.5 |
| PTTWM-0860 | 3.5 - 6.0 | 24.0 | ||||||
| M10 | PTTWM-1040 | 1.0 - 4.0 | 19.2 |
Small countersunk veticalstripe blind hole
(Unit):mm
| Thread | Model | Riveting Range (Min - Max) | Post-riveting Height (Reference) | Installation Hole Diameter | D (Shank Diameter) | B (Head Diameter) | Head Thickness | Total Length |
| M4 | XTTWM-0420 XTTWM-0435 |
0.5 - 2.0 2.0 - 3.5 |
11.0 | 6.0 | 5.9 | 7.0 | 0.5 | 15.0 15.5 |
| M5 | XTTWM-0520 XTTWM-0535 |
0.5 - 2.0 2.0 - 3.5 |
12.5 | 7.0 | 6.9 | 8.0 | 0.5 | 16.5 18.0 |
| M6 | XTTWM-0630 XTTWM-0645 |
0.5 - 3.0 3.0 - 4.5 |
15.5 | 9.0 | 8.9 | 10.0 | 0.6 | 20.5 22.0 |
| M8 | XTTWM-0830 XTTWM-0845 |
0.5 - 3.0 3.0 - 4.5 |
17.0 | 11.0 | 10.9 | 12.0 | 0.65 | 23.0 24.5 |
| M10 | XTTWM-1030 XTTWM-1050 |
1.0 - 3.0 3.0 - 5.0 |
18.2 |
Small countersunk head full hexagon
(Unit):mm
| Thread | Model | Riveting Range (Min - Max) | Post-riveting Height (Reference) | Installation Hole Size | D (Shank Diameter) | HB (Head Diameter) | K (Head Thickness) | L (Total Length) |
| M4 | XTQL-0425 XTQL-0450 |
0.5 - 2.5 2.5 - 5.0 |
6.7 | 6.0 | 5.9 | 7.0 | 0.5 | 11.0 13.5 |
| M5 | XTQL-0530 XTQL-0550 |
0.5 - 3.0 3.0 - 5.0 |
9.0 | 7.0 | 6.9 | 8.0 | 0.5 | 14.5 16.0 |
| M6 | XTQL-0635 XTQL-0660 |
1.0 - 3.5 3.5 - 6.0 |
10.0 | 9.0 | 8.9 | 10.0 | 0.6 | 16.0 18.0 |
| M8 | XTQL-0840 XTQL-0860 |
1.0 - 4.0 4.0 - 6.0 |
11.5 | 11.0 | 10.9 | 12.0 | 0.65 | 18.0 20.0 |
| M10 | XTQL-1035 XTQL-1060 |
1.0 - 3.5 3.5 - 6.0 |
12.5 14.5 |
Ssmallcountersunk head fullhexagonal blind hole
(Unit):mm
| Thread | Model | Riveting Range (Min - Max) | Post-riveting Height (Reference) | Installation Hole Size | D (Shank Diameter) | HB (Head Diameter) | K (Head Thickness) | L (Total Length) |
| M4 | XTQLM-0425 | 0.5 - 2.5 | 12.3 | 6.0 | 5.9 | 7.0 | 0.5 | 16.0 |
| M5 | XTQLM-0530 | 0.5 - 3.0 | 15.2 | 7.0 | 6.9 | 8.0 | 0.5 | 20.0 |
| M6 | XTQLM-0635 | 0.5 - 3.5 | 14.5 | 9.0 | 8.9 | 10.0 | 0.6 | 20.5 |
| M8 | XTQLM-0840 | 1.0 - 4.0 | 17.0 | 11.0 | 10.9 | 12.0 | 0.65 | 23.0 |
| M10 | XTQLM-1045 | 1.0 - 4.5 | 20.0 |
Full hexagonal flathead
(Unit):mm
| Thread | Model | Riveting Range (Min - Max) | Post-riveting Height (Reference) | Installation Hole Diameter | D (Shank Diameter) | Head Diameter | Head Thickness | Total Length |
| M4 | PTQL-30 | 0.5 - 2.0 | 7.8 | 6.0 | 5.9 | 9.0 | 1.0 | 12.5 |
| M5 | PTQL-30 | 0.5 - 3.0 | 8.8 | 7.0 | 6.9 | 10.0 | 1.0 | 14.5 |
| M6 | PTQL-30 | 0.5 - 3.0 | 9.8 | 9.0 | 8.9 | 12.0 | 1.5 | 15.0 |
| M8 | PTQL-30 | 1.0 - 2.0 | 10.5 | 11.0 | 10.9 | 15.5 | 1.5 | 18.0 |
| M10 | PTQL-40 | 1.0 - 4.0 | 15.5 | 13.0 | 12.9 | 16.0 | 2.1 | 21.0 |
| M12 | PTOI-50 | 2.0 - 5.0 | 16.5 |
Flathead full hexagonal blind hole
(Unit):mm
| Thread | Model | Riveting Range (Min - Max) | Post-riveting Height (Reference) | Installation Hole Size | HD (Shank Opposite Side) | B (Head Diameter) | K (Head Thickness) | Total Length |
| M4 | PTQLM-0420 | 0.5 - 2.0 | 11.0 | 6.0 | 5.9 | 9.0 | 1.0 | 15.0 |
| M5 | PTQLM-0525 | 0.5 - 2.5 | 13.5 | 7.0 | 6.9 | 10.0 | 1.0 | 18.0 |
| M6 | PTQLM-0630 | 0.5 - 3.0 | 17.0 | 9.0 | 8.9 | 12.7 | 1.5 | 23.0 |
| M8 | PTOLM-0835 | 1.0 - 3.5 | 19.0 | 11.0 | 10.9 | 16.0 | 1.5 | 26.0 |
| M10 | PTQLM-1040 | 1.0 - 4.0 | 25.0 |
Flathead square rivet nut
(Unit):mm
| Thread | Model | Riveting Range (Min - Max) | Post-riveting Height (Reference) | Installation Hole Size | D (Shank Diameter) | Head Diameter | Head Thickness | Total Length |
| M4 | PTSL-0420 | 0.5 - 2.0 | 6.0 | 6.0 | 6.0 | 9.0 | 0.8 | 10.8 |
| M5 | PTSL-0525 | 0.5 - 2.5 | 7.0 | 7.0 | 7.0 | 10.0 | 1.0 | 13.0 |
| M6 | PTSL-0630 | 0.5 - 3.0 | 8.5 | 9.0 | 9.0 | 13.0 | 1.5 | 15.0 |
| M8 | PTSL-0835 | 1.0 - 3.5 | 11.0 |
Lantern blind nuts
(Unit):mm
| Thread | Model | Riveting Range (Min - Max) | Installation Hole Diameter | D (Shank Diameter) | Head Diameter | Head Thickness | Total Length |
| M5 | DL-0540 | 0.5 - 4.0 | 7.62 | 7.62 | 12.7 | 1.0 | 22.0 |
| M5 | DL-0580 | 4.0 - 8.0 | 7.62 | 7.62 | 12.7 | 1.0 | 25.0 |
| M6 | DL-0670 | 0.5 - 7.0 | 9.35 | 9.35 | 16.0 | 1.5 | 27.0 |
| M6 | DL-06130 | 7.0 - 13.0 | 9.35 | 9.35 | 16.0 | 1.5 | 33.0 |
| M8 | DL-0870 | 0.5 - 7.0 | 11.50 | 11.50 | 19.0 | 1.6 | 30.0 |
| M8 | DL-08130 | 7.0 - 13.0 | 11.50 | 11.50 | 19.0 | 1.6 | 36.0 |
| M10 | DL-1070 | 0.5 - 7.0 | 13.30 | 13.30 | 22.0 | 2.2 | 33.0 |
| M10 | DL-10130 | 7.0 - 13.0 | 13.30 |
