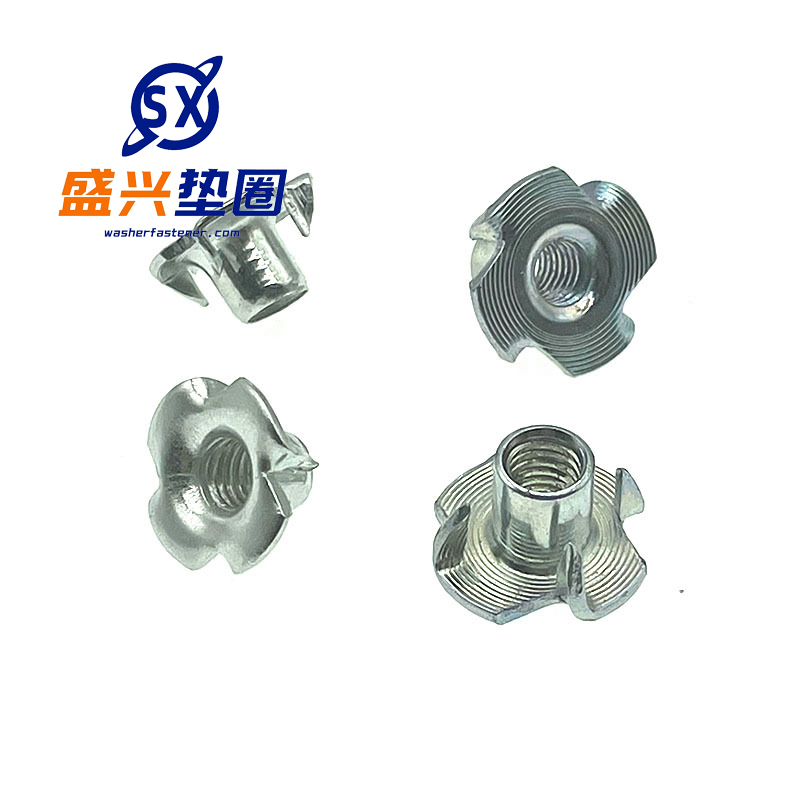

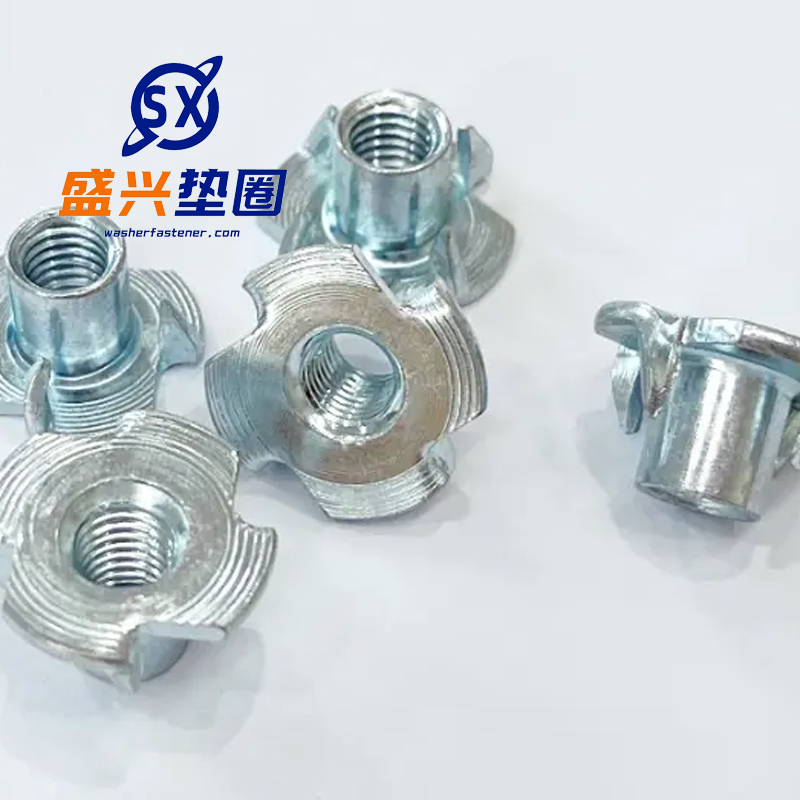

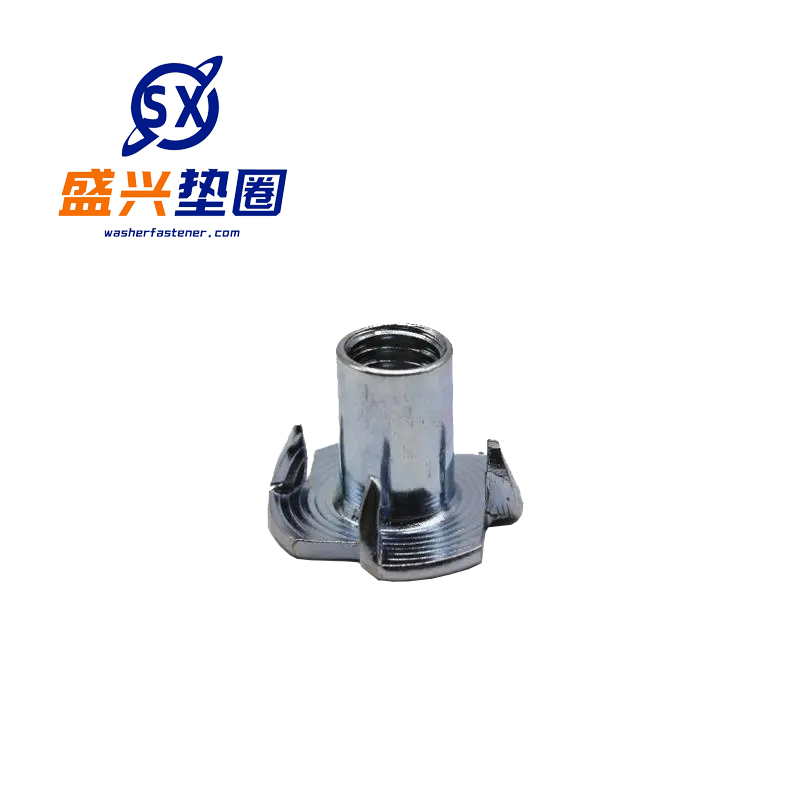

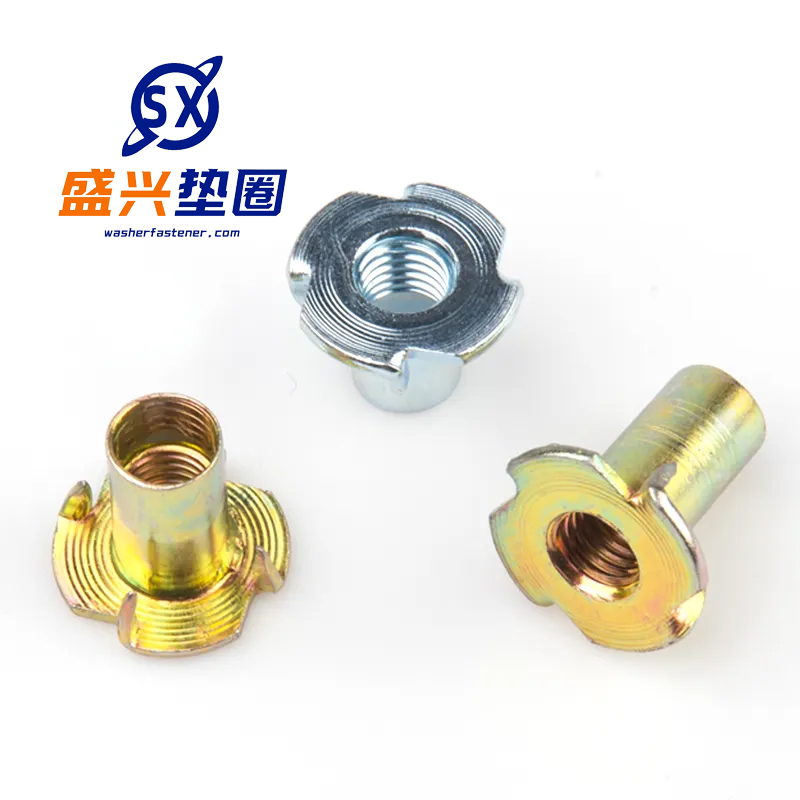

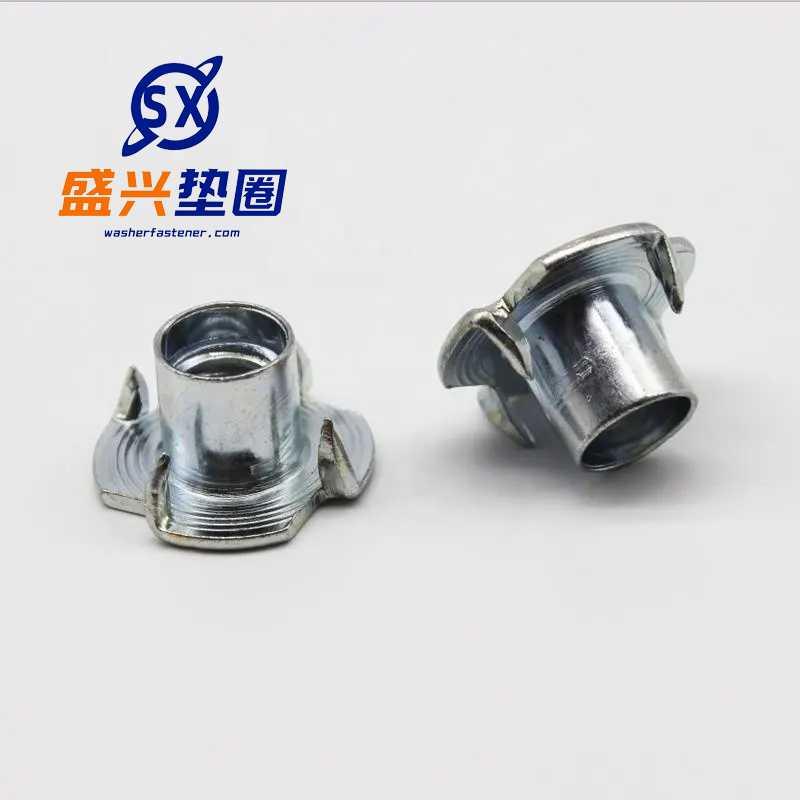

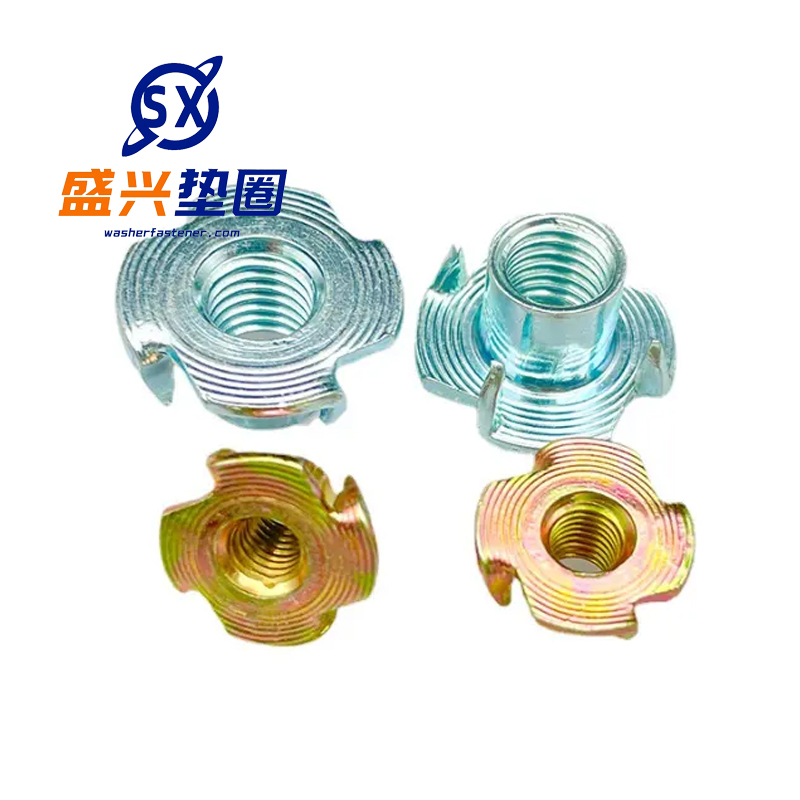

Four-claw nuts
Function 1. Tightening function: By cooperating with bolts, it plays a role in connecting and fastening two or more components.2. Pressure dispersion: The four claws can distribute pressure over a larger area, reducing local pressure on the connecting components and preventing damage.3. Increa...
Description
marker
Function
1. Tightening function: By cooperating with bolts, it plays a role in connecting and fastening two or more components.
2. Pressure dispersion: The four claws can distribute pressure over a larger area, reducing local pressure on the connecting components and preventing damage.
3. Increase friction: Compared to ordinary nuts, four jaw nuts have a larger contact area with the connected components, providing greater friction and making the connection more stable.
Purpose
1. Mechanical manufacturing: Used in the assembly of various mechanical equipment to connect different parts and ensure the structural stability of the equipment.
2. In the field of architecture: it can be used to connect components in building structures, such as steel beams, steel columns, etc.
3. Automotive manufacturing: plays an important role in the assembly of parts such as the engine and chassis of a car.
4. Furniture manufacturing: used to connect various components of furniture to make it more sturdy and durable.
| Mon | M4 | M5 | M6 | M8 | M10 |
| P | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
| ds | 5.6 | 6.5 | 7.7 | 10 | 12 |
| h | 6.95 | 9.15 | 10.3 | 12.75 | 14.5 |
| dk | 15 | 17 | 19 | 22 | 25.5 |
| k | 0.95 | 1.15 | 1.3 | 1.75 | 1.5 |
